Our Softouch series computers are designed with NEMA 4X enclosures to withstand a wide range of temperatures and washdown requirements, IP-69 connectors for USB, ethernet, and serial ports, resistive touchscreen that can be used while wearing PPE or in a wet environment, mSATA SSD hard drives for speedy imaging, and customizable configurations to meet your serial, USB, or ethernet port needs. In addition, our Softouch systems utilize industrial motherboards that are designed to provide consistent, reliable performance in harsh and rugged environments.

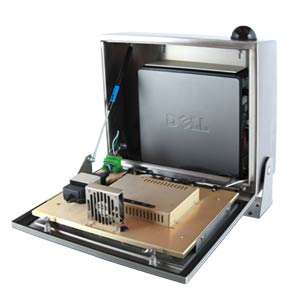

All Softouch models, apart from the Softouch PC Enclosure, also include a built-in UPS with battery backup and automatic controlled shutdown on low power to ensure data integrity, even in the face of power failure.

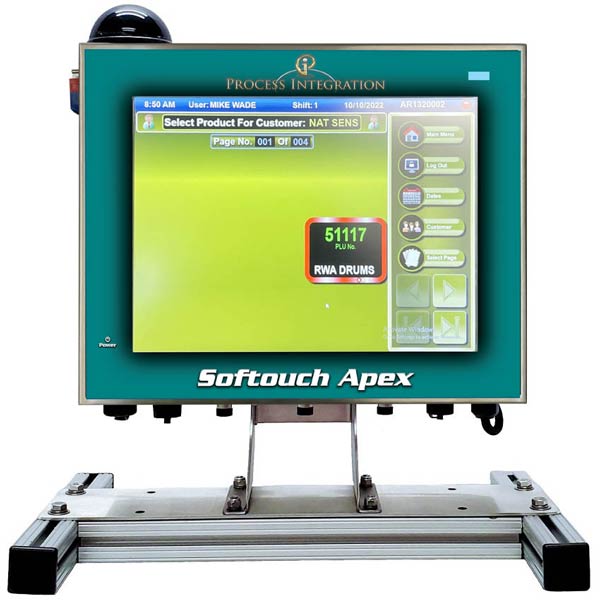

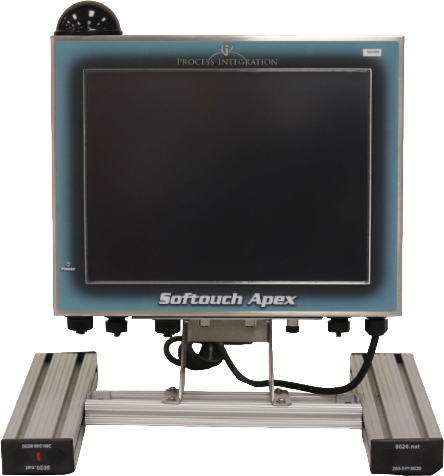

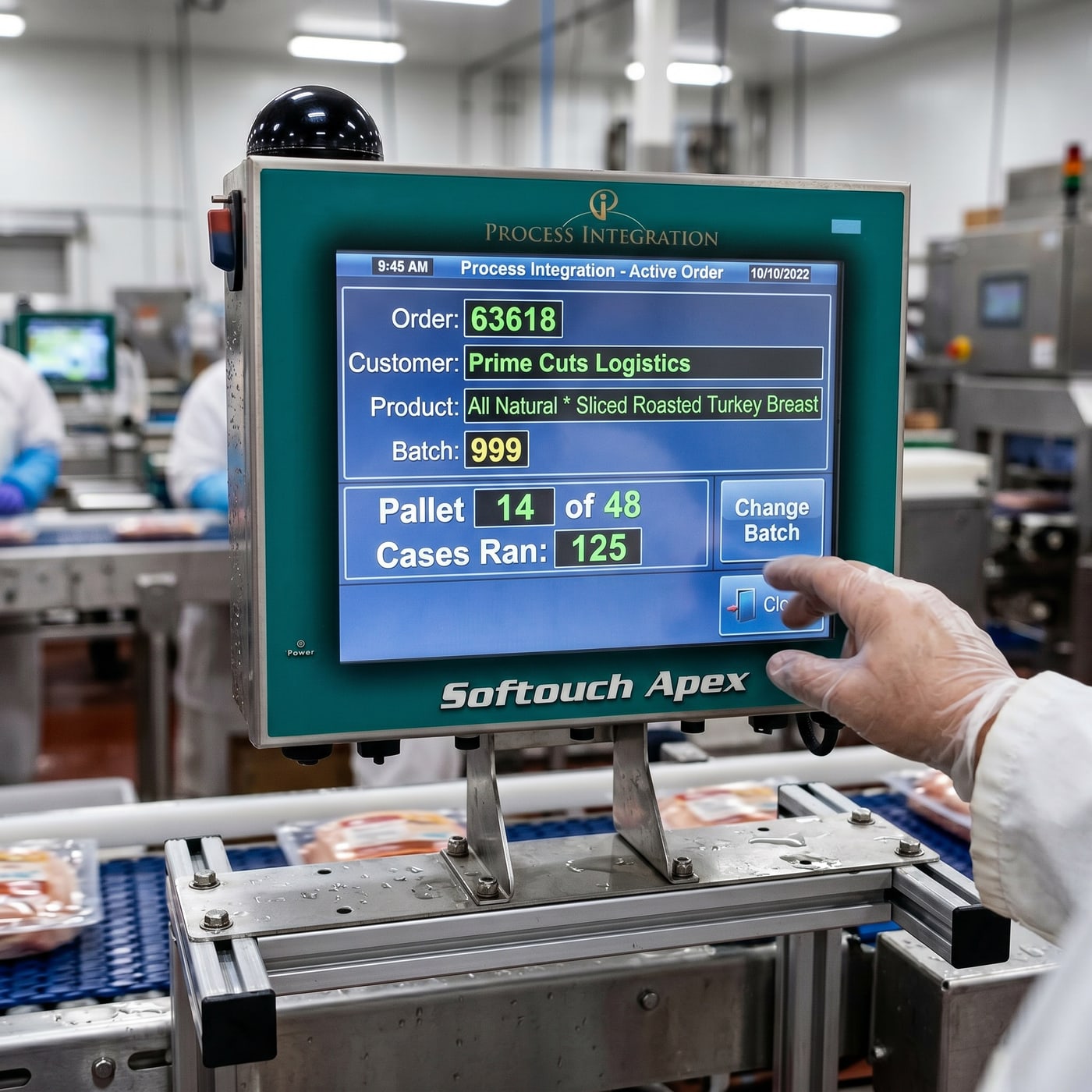

Rugged Industrial Computer
A 15-inch industrial computer designed for reliable operation in washdown and demanding plant-floor environments. The Apex combines rugged construction and dependable system protection for everyday industrial performance.

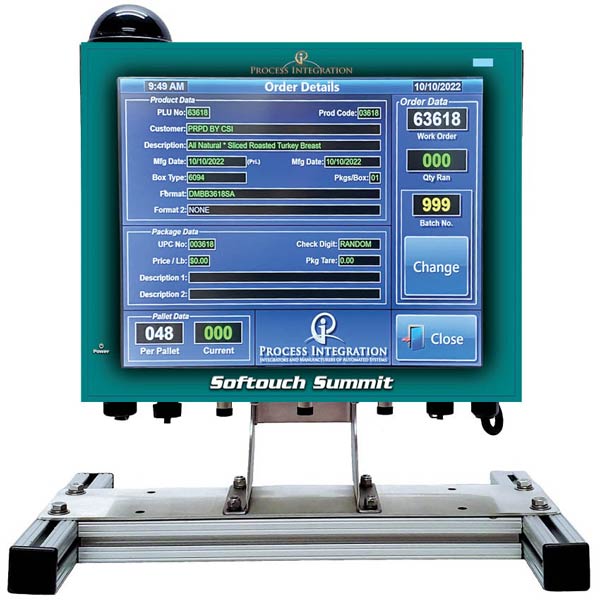

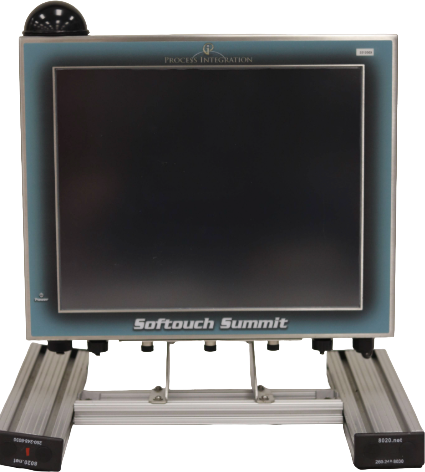

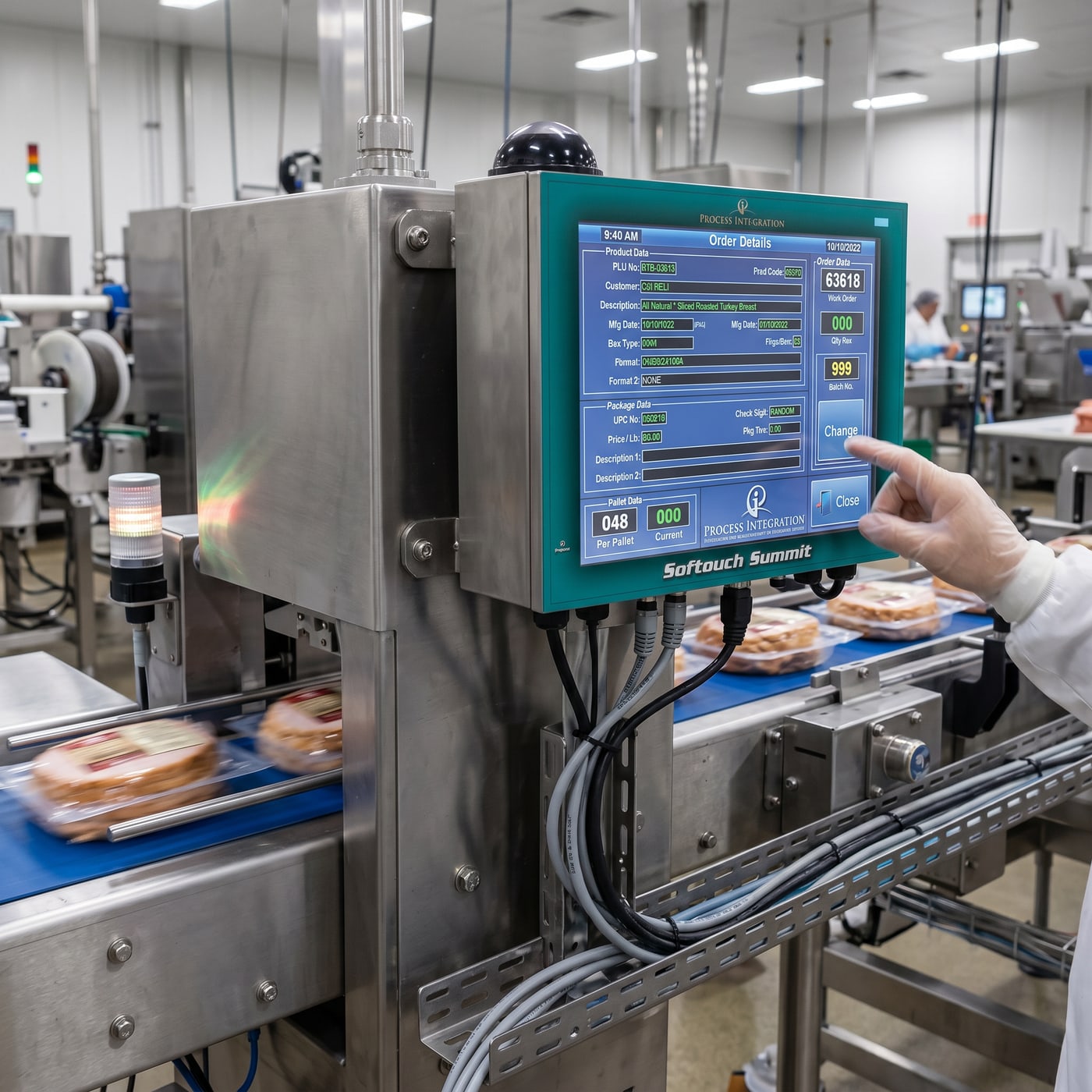

Industrial Touchscreen Computer
Built with a larger 17-inch display, the Summit offers the same rugged Softouch performance with added screen space for monitoring, control, and operator interaction in harsh industrial settings.

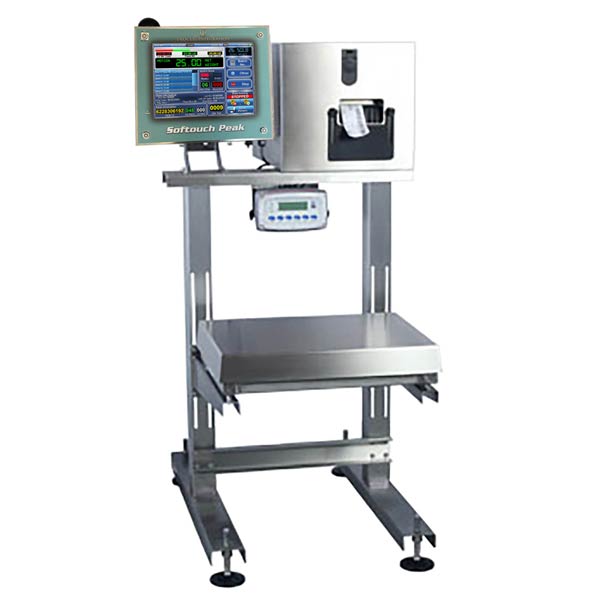

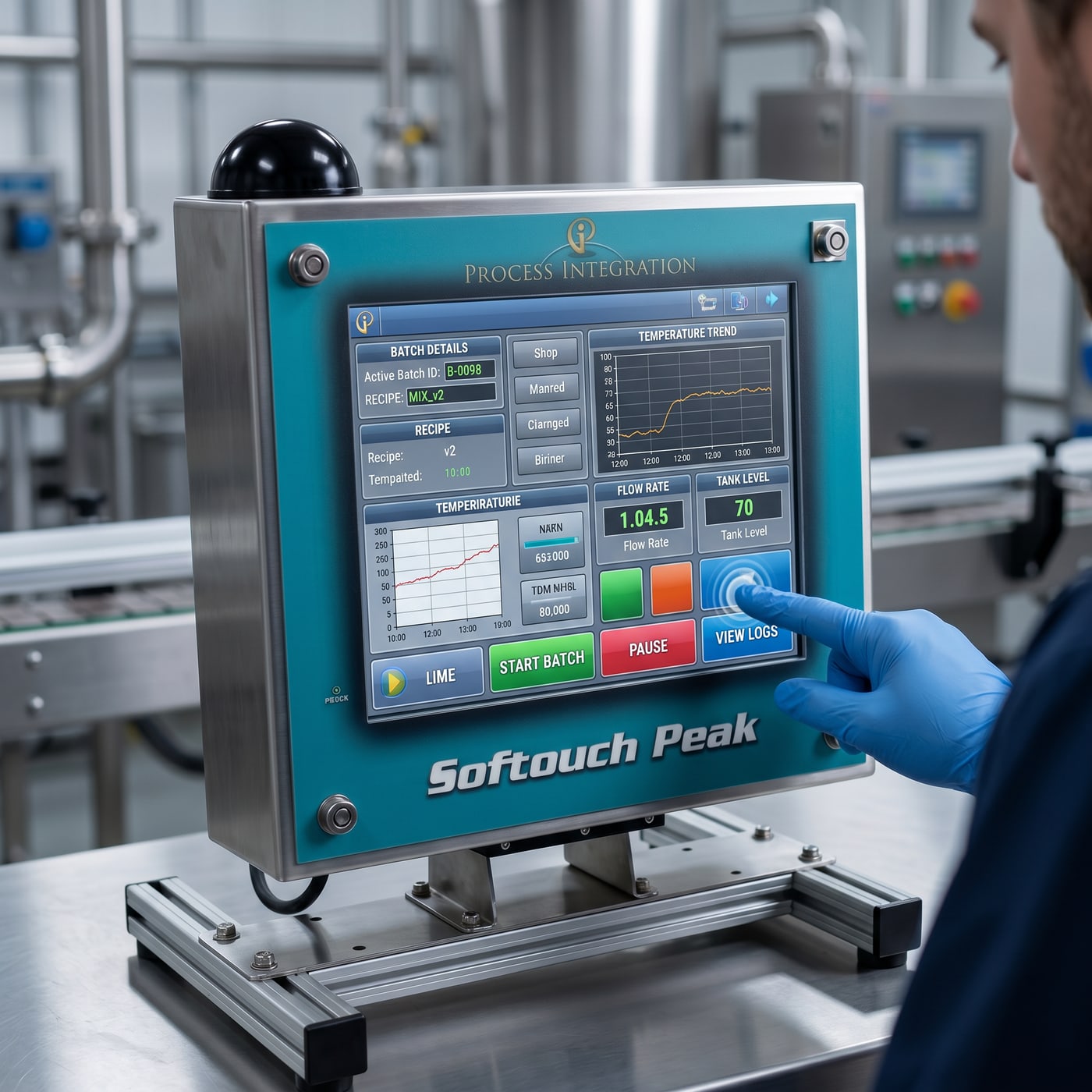

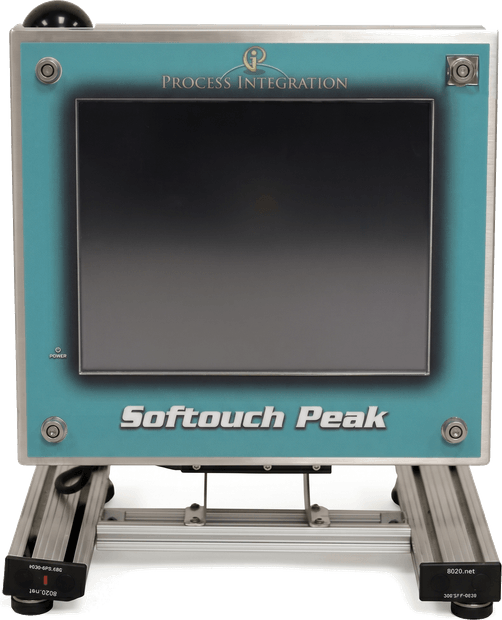

Industrial Touchscreen PC
The Peak is a rugged 15-inch touchscreen solution built for efficient control, data entry, and process visibility in demanding industrial applications. It delivers the durability and reliability needed for fast-paced environments.

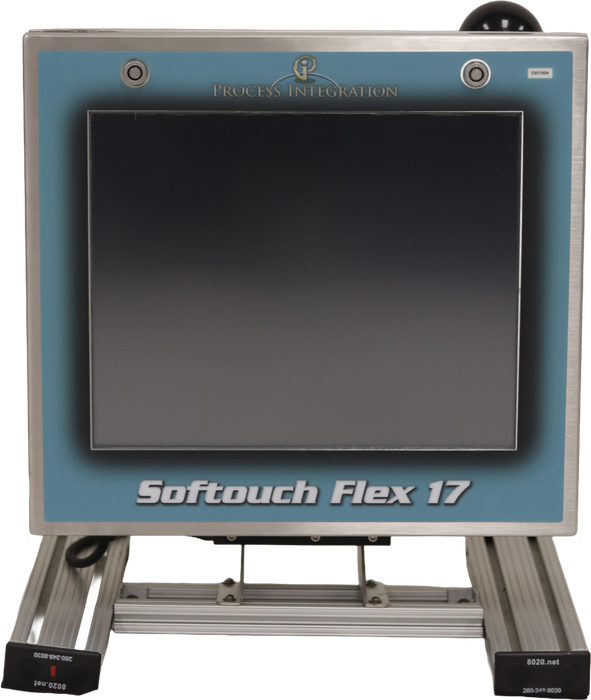

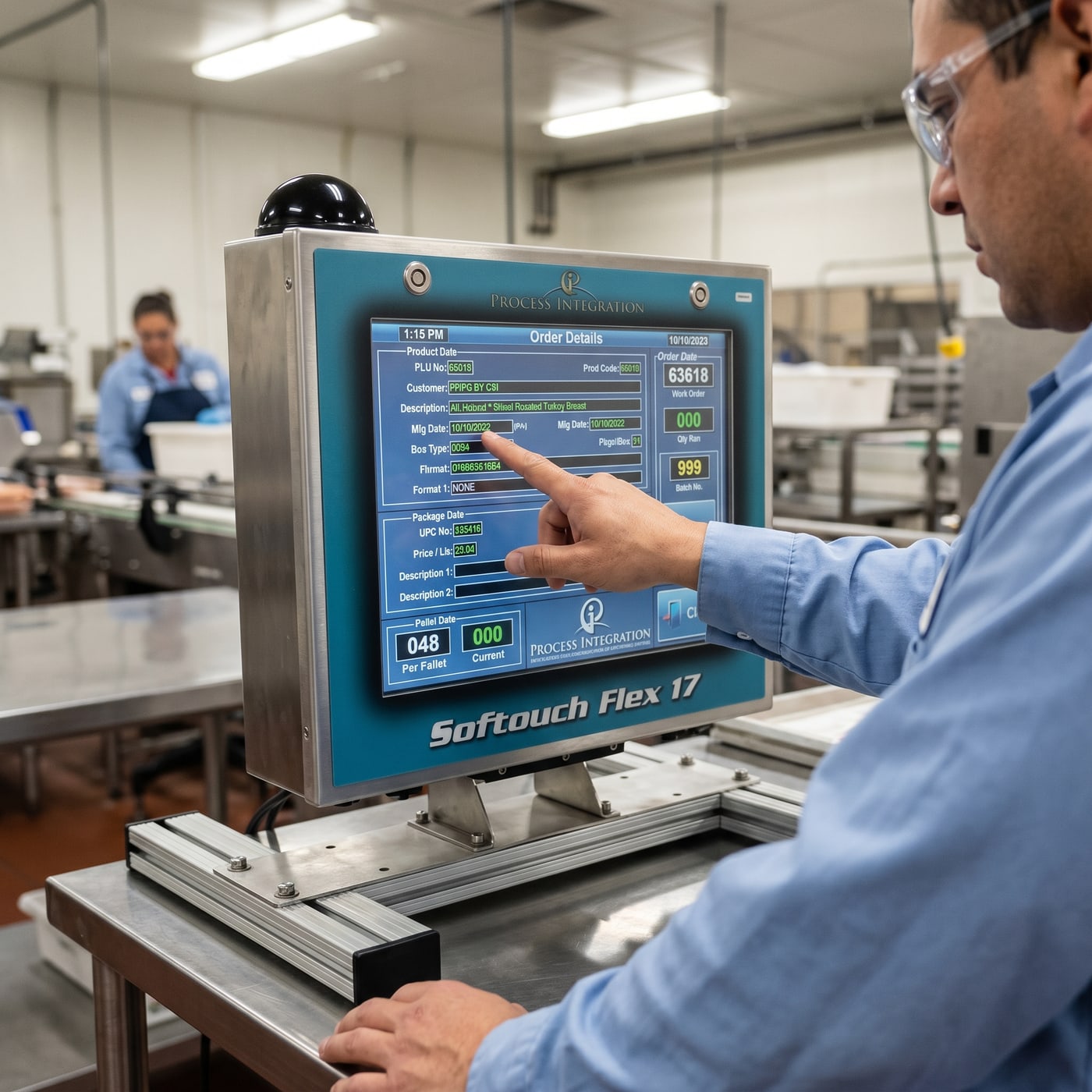

Flexible Industrial PC
The Flex offers a versatile Softouch option for applications that require a customer-supplied PC while still benefiting from rugged industrial design and core Softouch reliability.
Process Integration, Inc. manufactures our Softouch series of industrial computers to withstand the harshest environments with continued operational back up and support services, custom tailored to the individual needs of our customers. The performance and dependability that processing and industrial partners require with continued support and expandability throughout the manufacturing facility. Customized to individual needs assessment, the Softouch series of industrial computers provides comprehensive solutions, backup and performance.
All Softouch models, with the exception of the Softouch PC Enclosure, include a built-in UPS with battery backup and automatic controlled shutdown on low power to ensure data integrity, even in the face of power failure.
| Apex | Summit | Peak | Flex | |
|---|---|---|---|---|
| Intel Core i7 Processor | Included | Included | Included | (depends on the PC fitted — see note below the table)Included |
| 128GB mSATA SSD | Included | Included | Included | (depends on the PC fitted — see note below the table)Included |
| 16GB DDR4 RAM | Included | Included | Included | (depends on the PC fitted — see note below the table)Included |
| Wi-Fi 6 (802.11ax) | Included | Included | Included | Antenna only |
| Windows 11 IoT Enterprise LTSC 2024 | Included | Included | Included | (depends on the PC fitted — see note below the table)Included |
| (2) Ethernet Ports | Included | Included | Included | Not included |
| (2) IP69 USB Ports | Included | Included | Included | Not included |
| (3) Serial Ports | Included | Included | Included | Not included |
| ICOTECH Cable Gland | Not included | Not included | Included | Included |
| Option plates available for additional ports | Included | Included | Included | Included |
| Built in UPS Battery Backup | Included | Included | Included | Included |
| Automatic Controlled Shutdown on Power Loss (see note below the table) | Included | Included | Included | Included |
| 15" LCD Resistive Touchscreen | Included | Not included | Included | Included |
| 17" LCD Resistive Touchscreen | Not included | Included | Not included | Included |
| Accepts a customer-supplied PC | Not included | Not included | Not included | Included |
All Softouch industrial computers are designed to meet NEMA 4X environmental enclosure standards, which have been designed to withstand a wide range of temperatures, washdown requirements and industrial exposure.
Automatic controlled shutdown only works with Process Integration, Inc. software and drivers.
The Flex accepts a PC of your choosing, so its processor, memory, storage and operating system are set by the PC fitted rather than by the enclosure. The specification shown is what we supply as standard.
As an Authorized Dell Technologies Partner, Softouch can integrate Dell hardware directly into our custom protective encasings, creating complete, deployment-ready solutions. Our partnership gives customers access to trusted Dell devices, expert system integration, and customized configurations tailored to their specific needs.

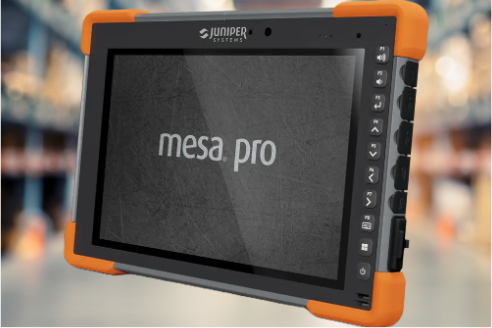

The Juniper Mesa Pro is a rugged Windows tablet built for reliable operation in challenging outdoor and industrial environments. Featuring a large sunlight-readable display, powerful processing capabilities, and an IP68-rated design, it supports efficient data collection, asset management, and field-based workflows.

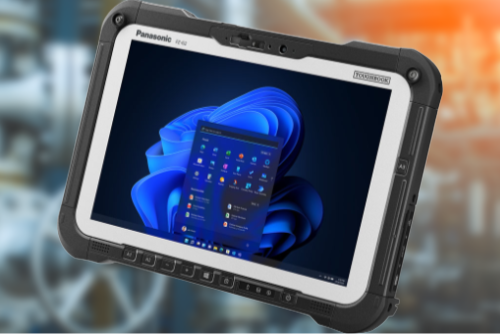

The Panasonic TOUGHBOOK is a fully rugged tablet designed for field service, manufacturing, warehousing, and logistics applications. With powerful performance, modular expansion options, and durability built for harsh conditions, it helps keep workers connected and productive wherever the job takes them.
